Creating Framed (Basic) Dimensions | ||||||
|
| |||||
-
From the
Annotation
section of the
action bar, click Framed (Basic) Dimension
.
-

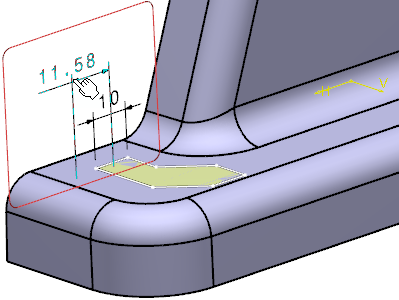

Select dimensions as shown on the part.

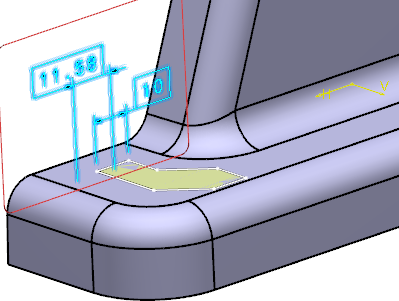

The dimensions are converted into basic dimensions.
The Framed (Basic) Dimensions Management dialog box is updated. The validity of each converted annotation is checked.
During the conversion, converted annotations remain selected in the tree, in 3D area and in the dialog box.
-

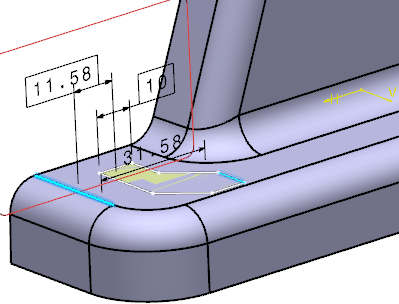

Select edges as shown on the part.

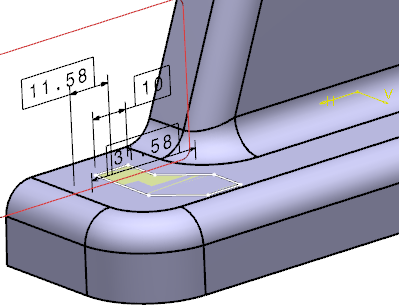

The basic dimension is pre-created.
-
Click anywhere in the 3D area to create the basic dimension.
